Alumasc MM6125 Hot Melt System Installation

Key Features:

• Alumasc MM6125 Hot Melt System
• Green Roof Installation with Wildflower and Sedum Matting
• Paving to Communal Areas with 400x400x50mm Standard Grey Pave Pads

Project Details

Roofing Solution

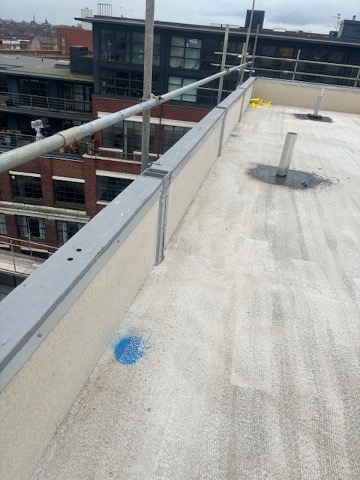

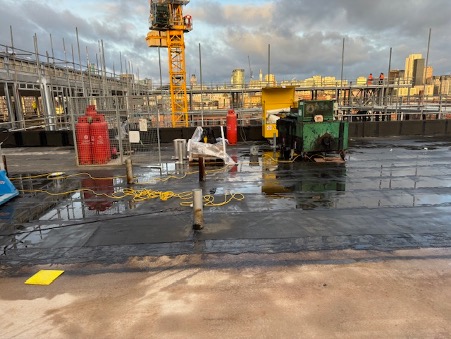

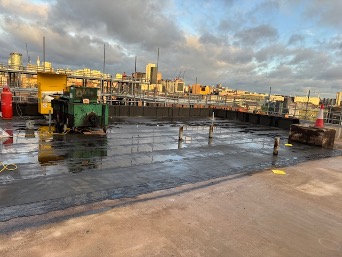

The Alumasc MM6125 Hot Melt system was selected due to its long-lasting, high-performance waterproofing properties. With its self-healing capabilities, the system offers reliable protection against water ingress, ensuring the building’s integrity for years to come. The system’s seamless application and exceptional flexibility made it the ideal choice for the large 3,400m² roof area, delivered efficiently within the 8-month timeframe.

Green Roof Specification

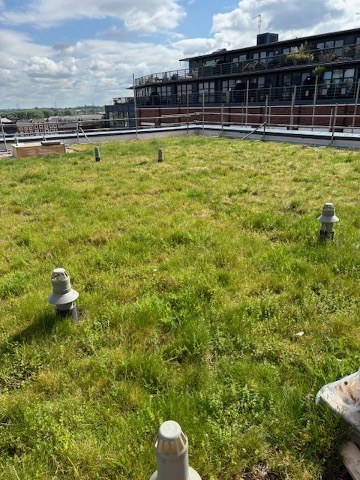

A key feature of the project was the green roof installation, which aimed to enhance the building’s environmental credentials. The green roof included a wildflower and sedum matting system laid on a 100mm substrate layer, providing a low-maintenance and visually appealing space.

• Sedum and Wildflower Matting: This combination of vegetation promotes biodiversity, offering a habitat for wildlife while also helping to reduce rainwater runoff.

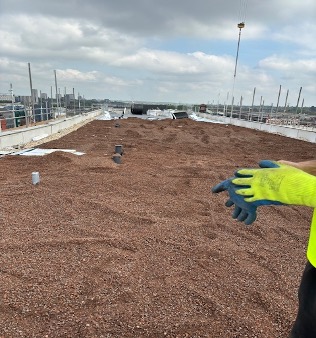

• 100mm Substrate Layer: This layer provided the necessary depth for plant growth while ensuring proper drainage.
• 40mm Drainage Layer with Filter: The drainage layer ensures that excess water is efficiently managed, preventing pooling and promoting plant health by maintaining optimal moisture levels.

Paving Finishes

For the communal areas, a durable and aesthetic paving solution was installed using 400x400x50mm standard grey paving pads. These were set on non-combustible pedestals, allowing for proper ventilation and ensuring the paving could handle the wear and tear of high foot traffic.

• 400x400x50mm Standard Grey Pave Pads: Chosen for their functionality and sleek aesthetic, these pave pads provided a robust and attractive surface for the building’s communal spaces.
• Non-Combustible Pedestals: The pedestals were selected to ensure the paving is securely supported and allows for the free flow of water underneath, while also contributing to the overall safety and longevity of the system.

Challenges and Solutions

• Weather Conditions: The unpredictable weather in Birmingham posed a challenge for scheduling work. However, with proper planning and adaptive strategies, the project team was able to maintain momentum, ensuring the roof and green space were completed on time.
• Integration of Green Roof and Paving: Balancing the need for effective drainage in the green roof area while ensuring the paving system was installed to high standards required close coordination between the roofing and landscaping teams. Both systems were installed with precision to ensure seamless integration and long-term functionality.

Conclusion

This project in Digbeth, Birmingham, demonstrates the versatility and reliability of the Alumasc MM6125 Hot Melt system, alongside the benefits of a sustainable green roof and durable paving finishes. The combination of these solutions not only provided long-term waterproofing and environmental benefits but also created a visually appealing and functional outdoor space for the building’s occupants. The successful delivery of this 3,400m² project within the 8-month programme highlights the expertise and dedication of the project team, ensuring a high-quality result that will stand the test of time.

For more information about the Alumasc MM6125 Hot Melt system and our full range of roofing solutions, please contact us today.
